Description
Features:
- Heavy-duty OE replacement connecting rods
- Certified 8620 AISI steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high rpm bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high rpm longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated

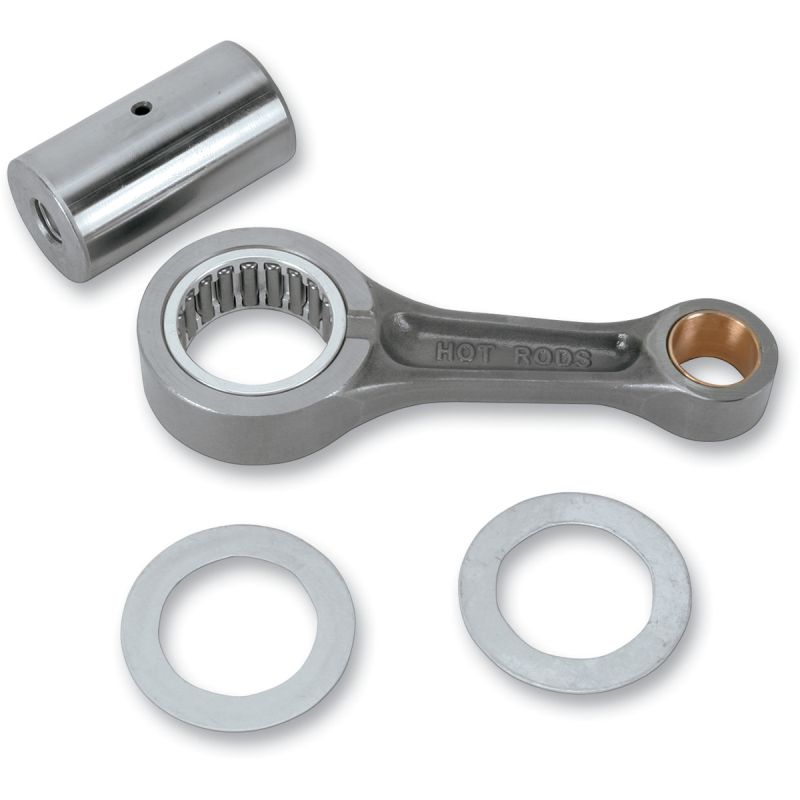

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers
- Compatible with Hot Rods and OE crankshafts
Measurements:
- Big End Bearing (mm):
- 33X41X19.8
- Big End Bore (mm):
- 41.00
- Big End Width (mm): 19.80
- Center To Center (mm): 102.00
- Pin Diameter (mm): 33.00
- Pin Length (mm): 60.90
- Small End Bearing (mm): NO BUSHING
- Small End Bore (mm): 19.00
- Small End Width (mm): 17.90
- Washer Thickness (mm): 0.95
