Description
Features:
- Heavy-duty OE replacement connecting rods
- Certified 8620 AISI steel provides superior strength
- Uniquely designed big end uses strategically located side scalloping vent slots to minimize high rpm bearing race distortion
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
- Hot Rods uses the latest in caged needle roller bearing designs for high rpm longevity
- Thrust washers are manufactured from bronze phosphor and are silver coated

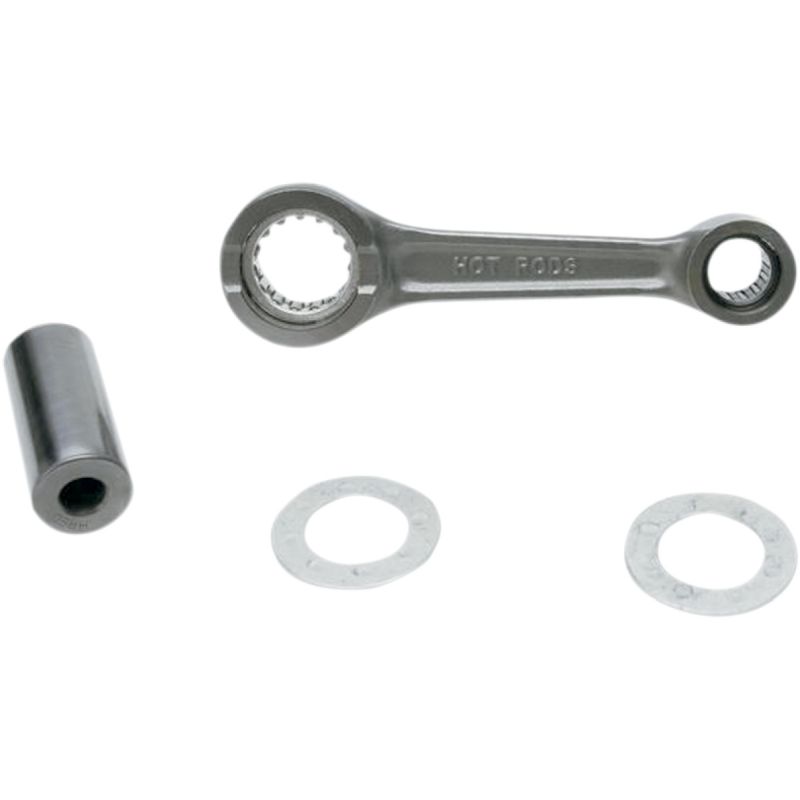

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers
- Compatible with Hot Rods and OE crankshafts
Measurements:
- Big End Bearing (mm): 4x32x20
- Big End Bore (mm): 2.00
- Big End Width (mm): 9.95
- Center To Center (mm): 25.00
- Pin Diameter (mm): 4.00
- Pin Length (mm): 8.40
- Small End Bearing (mm): 8x22x24
- Small End Bore (mm): 2.00
- Small End Width (mm): 1.95
- Washer Thickness (mm): 2
